Concrete Conveyor Belt

Introduction

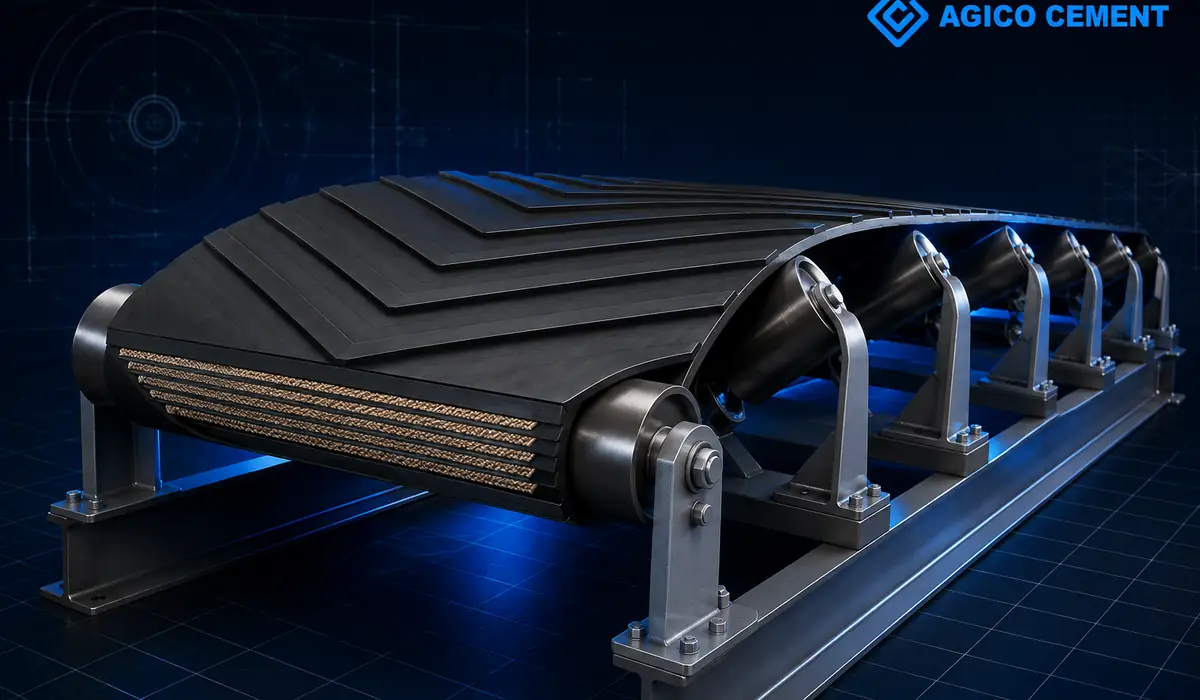

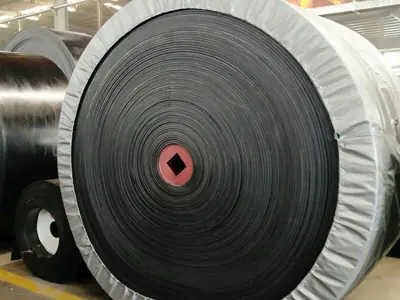

The concrete conveyor belt is a composite product made of rubber, fiber, metal, or plastic and fabric, which is used in concrete conveyor to carry and transport materials. Concrete conveyor belt is widely used in cement, coking, metallurgy, chemical industry, steel, agriculture, industrial and mining enterprises, cement industry and transportation industry to transport various solid block and powdery materials or items. The conveyor belt can work continuously, efficiently even at large angles. The operation of concrete conveyor belt is safe. The conveyor belt is easy to use, easy to maintain, and it can shorten the transportation distance, reduce the project cost and save manpower and material resources.

Steel cord conveyor belts

Application: Distribution center, cement plant, coal mine, quarry, power plant, steel mill.
Suitable for: Main conveying line, long distance conveying, roadway conveying, loading machine, inclined conveying, other demanding conveying.

General-purpose steel cord belt

The frame material of general-purpose steel cord belt is made of high strength wire rope, which is formed by cold pressing, glue covering and vulcanization process.
Application: cement plants, coal mines, quarries, power plants, steel mills, etc.
Tensile strength: 500 ~ 10000N/mm Width: 500 ~ 3200mm.
Advantages:

1. Galvanized open steel core
   Galvanized open steel core can meets various special needs. The steel core has high elasticity and low elongation, high impact resistance and high joint efficiency. Galvanized steel wire rope can be tightly bonded with core glue to form a protective layer against rust.
2. Reduce tension stroke
   The maximum elongation under rated tension is 0.25%, which can reduce the cost of the tensioning system in many applications, making the steel core conveyor belt the first choice in long distance or low elongation conveying occasions.
3. Longer joint life
   Experiments on dynamic joint testing machine prove that the efficiency of the steel core conveyor belt of AGICO Cement can reach the same service life as the conveyor belt when the load exceeds 50% of the rated strength according to the test method of DIN22131.3.
4. Lower unit transportation costs
   Fewer conveyors and joints, shorter tensioning stroke of AGOCO's steel core conveyor belt save investment costs. Longer conveyor belt and joint working life, reduce downtime, reduce unit delivery cost.

Anti-tearing steel cord belt

Between the upper cover glue and the core glue (or between the lower cover glue and the core glue) of the ordinary structure wire rope core conveyor belt, add one or two layers of anti-tearing net to prevent foreign bodies from entering or tearing the belt body. Tear mesh can be selected as steel mesh, tear strength can reach 125 ~ 800N/mm, or fabric tear mesh, tear strength is 50 ~ 80N/mm.
Tensile strength: 500 ~ 10000N/mm Width: 500 ~ 3200mm.
Advantages:

1. Using galvanized open wire rope
   The steel wire rope adopts open structure so that the rubber and steel wire rope are firmly combined.The surface of steel wire is galvanized, which well solves the bonding problem of steel wire rope and rubber to endow them with a long service life.
2. High performance tear resistant frame
   Customers can choose fiber or metal tear resistant layer according to their needs. Under the premise of meeting harsh impact working conditions, the conveyor belt still has excellent slotting performance and will not produce running deviation and material defects.
3. Rubber with excellent performance
   The performance of AGICO’s rubber is good, manifested in high strength, moderate elongation at break, aging resistance, wear resistance, high tear strength, good safety; our glue is more tightly bonded to core glue, and also provides good impact resistance and tear resistance.

Rip detection steel cord belt

Adding embedded coil in the production process of conveyor belt to protect the main conveying line properly with low cost. The transmission system will be shutdown automatically the very moment conveyor belt begin tearing to reduce the loss of users.
Tensile strength: 500 ~ 10000N/mm Width: 500 ~ 3200mm.
Advantages:

1. Advanced anti-tear coil production technology
   AGICO Cement uses the world's most advanced and mature anti-tear system manufacturing technology to ensure that the system automatically alerts the coil in any position when it is damaged, and accurately locates the damaged parts of the tape to reduce customer losses.
2. Long service life
   The special coil rubber formulation ensures optimum bonding of the coil, and the low profile ensures that the coil will not be damaged by the conveyor system cleaning equipment during service, and will not cause damage to the surface glue to ensure maximum service life.
3. Online monitoring
   All online anti-tearing systems can be connected to the Internet, and the operation of the conveyor belt can be monitored anytime and anywhere.

Heat resistant belt

Application: Cement plant, foundry, iron ore, steel mill.
Suitable for: cement slag conveying, coke conveying, hot powder material conveying, sinter ore, steel mill, iron ink ball conveying.
Tensile strength: 500 ~ 8000N/mm Width: 500 ~ 3200mm.
Advantages:

1. Excellent performance of heat resistant glue
   Heat resistant conveyor belt can conduct long-time transportation of the material of temperature of 200℃. The elasticity is stable and the surface rarely crack and harden, which can have a longer service life and reduce the replacement cost.
2. High strength belt structure
   The synthetic fiber material has a strength of 2000N/mm under high temperature conditions, and has good dimensional stability.
3. Using high temperature resistant materials
   AGICO Cement adopts special frame material which can be used in the occasions where the material temperature changes violently, and the instant heat resistant temperature can reach 538℃.

Plied textile belts

Application: Distribution center, Distribution place baggage transport, bulk material transfer station, cement, coal mine, casting industry, grain, quarry, parcel transport, wood, sand, steel mills.
Suitable for: coal washing plant, wood treatment, wood handling, main conveyor line, tunnel transportation, primary crushing line, secondary crushing line, ship unloader, garbage disposal and environmental recovery, stacking conveyor.

NN nylon belt

Features: NN canvas (nylon in both longitudinal and transverse direction) is used as the frame of the conveyor belt. It is suitable for conveying materials in medium and long distance under the condition of large impact and heavy wear.
Tensile strength: 80 ~ 3000N/mm Width: 500 ~ 3200mm.

CC cotton belt

Features: The frame of CC belt is cotton canvas (both longitudinal and transverse are cotton or polyester cotton), which is suitable for conveying bulk, granular, and powdery materials and pieces under general conditions or has excellent performance in heat resistant environment. Good fatigue resistance, small elongation, suitable for large slope transport materials.
Tensile strength: 56 ~ 800N/mm Width: 500 ~ 3200mm.
Advantages:
The canvas' structure is woven of polyester-cotton fiber in both meridian and zonal direction, which has low elongation and good adhesion. Deformation of the CC belt rarely occur under the condition of high temperature so that it is suitable for short distance or small amount conveyance.

EP polyester belt

Features: The frame of this kind belt is made of EP canvas (polyester lengthwise, nylon laterally). It has the characteristics of light weight, high modulus, impact resistance, small elongation, good elasticity, good troughs, moisture resistance, moth resistance and so on.
Tensile strength: 80 ~ 3000N/mm Width: 500 ~ 3200mm

Impact resistance belt

Application: Distribution center, cement factory, coal mine, foundry, quarrying factory, wood pulp and paper, steel mills, wood mills.
Suitable for: Wood handling and shipping, main conveyor line, roadway transportation, crushing production line, ship unloader, other harsh applications.
Tensile strength: 1050N/mm, 1400 N/mm, 1750 N/mm Width: 500 ~ 3200mm
Advantages:
1.The framework material adopts special triple warp braid method, which can provide high strength.
2.The conveyor belt has good elasticity and can make the use of roller diameter reduced, so as to reduce maintenance costs.

Why choose AGICO Cement?

At present, AGICO Cement's concrete conveyor belt is mainly divided into three series, namely, steel core belt, layered fabric core belt and solid woven conveyor belt including standard structure type, tear resistant type, integral steel mesh type, EP polyester canvas type, NN nylon canvas type, CC cotton canvas type, PVC belt, PVG belt and other 8 types. A total of hundreds of specifications can meet the needs of coal, cement, metallurgy, wharf, electric power, building materials, chemical and food industries conveying materials.
AGICO Cement has advanced production equipment. It introduced Germany Siemplekamp 3.45*18.5 m flat vulcanization production line, which is the widest, largest and most intelligent in the world. AGICO Cement has advanced testing equipment and perfect testing means, which can carry out whole-process, high-quality testing and control of raw materials, semi-finished products and finished products to ensure that users get high-quality products. AGICO Cement products have been sold to more than 70 countries and regions in Europe, the United States, Brazil, Chile, South Africa, Australia and so on.
