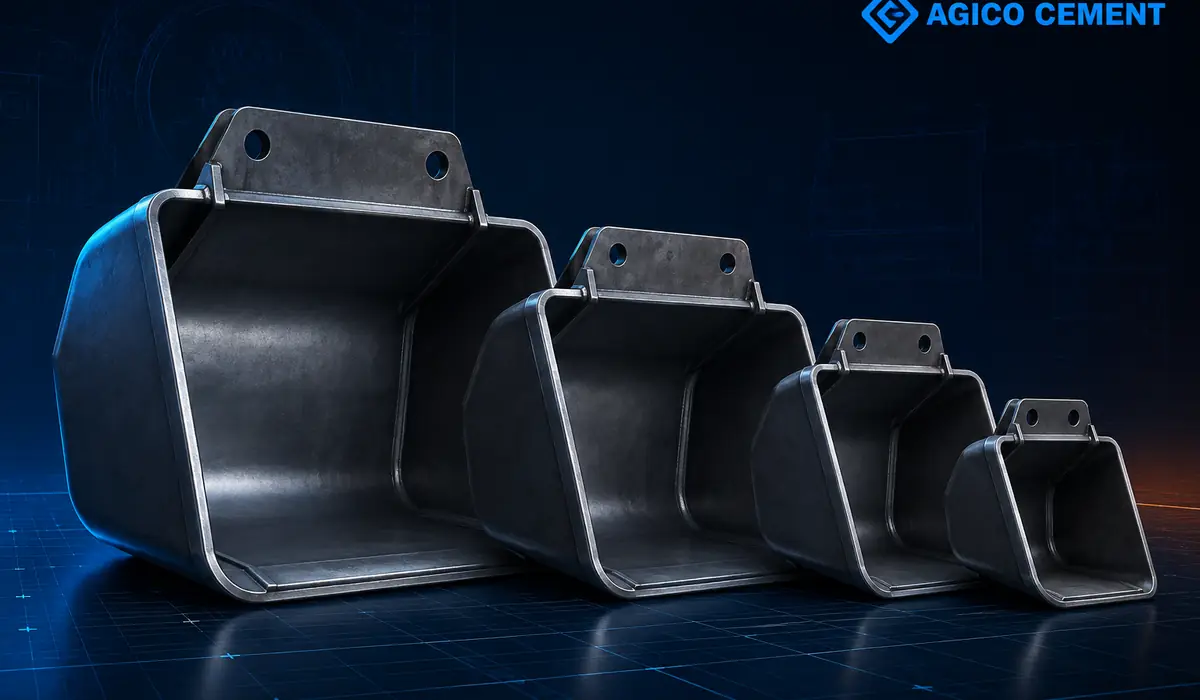

elevator bucket

Why choose AGICO's elevator bucket?

 Careful selection of materials

Made of thickened stainless steel, manganese steel, welding process, buckle design, strong and stable, not easy to break, and has a long service life.

 Reasonable design

Open-end discharge, precision control, adjustable discharge speed, additional outlet design, good sealing, not easy to spill, good pouring performance.

 Stable performance

low noise, low impact, the product in a high-temperature environment has less impact, adapted to a variety of environmental use.

 Corrosion resistance

The surface is heat-treated, which has good corrosion resistance and can be used in different environments for a long time.

AGICO Cement,as a reliable elevator bucket manufacturer, also provides other spare parts for bucket elevator such as chain wheel, plate chain and circle chain, head and boot.

Provide a customizable service

Capacity: calculate the volume of a single bucket according to the handling capacity of the elevator (tons/hour) and the operating speed. Free design drawings will be provided.

Spacing: the spacing of the elevator bucket is usually 1.5~2 times of bucket depth to avoid interference or poor discharge.

Installation method is optional:

Bolt fixing: easy to replace, but need to check the fasteners regularly.

Welding: high strength, suitable for heavy-duty working conditions, but maintenance is inconvenient.

Plug-in type: connected by slot or pin, balancing strength and convenience.

Features of elevator bucket

• Simple structure: the structure of elevator bucket is simple, easy to install and maintain, compact structure, occupies little space.
• Convenient operation: elevator bucket provides feeding and discharging ports, which are convenient for material inlet and outlet, and easy to operate.
• Safe and reliable: the design of elevator bucket takes into account the material characteristics and operating conditions, with good safety protection measures to ensure the safety and reliability of the production process.
• Wide range of applications: elevator bucket can be used in different production processes and material characteristics to meet different production needs.

Industrial elevator bucket manufacturing process

Lower material

Laser cutting: high precision, suitable for complex shapes (stainless steel, wear-resistant steel).

Stamping: high efficiency, suitable for mass production of carbon steel shallow bucket.

Forming

Bending / Rolling: forming the bucket body by hydraulic bending machine or rolling machine.

Stamping and stretching: multi-stage stamping and stretching process is commonly used for deep buckets.

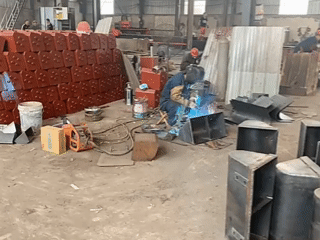

Welding

Arc welding (MIG/TIG): Stainless steel is tig welded to avoid carbonization.

Wear-resistant surfacing: Surfacing wear-resistant layer (e.g. tungsten carbide) on the lip or inner wall of the bucket.

Surface treatment

Sand blasting / shot blasting: to remove oxidized skin and improve coating adhesion.

Spraying: Epoxy resin coating to prevent corrosion, Teflon coating to prevent sticking.

What is elevator bucket

Elevator bucket(or lift buckets, industrial elevator bucket ) is an important part of bucket elevator, which is used to convey materials from the inlet to the elevator lifting drum of the elevator. Its core function is to lift the materials continuously in vertical or near vertical direction, which is suitable for the transportation of bulk materials.

What are the application scenarios for industrial elevator bucket?

1. Material storage and conveying in mining, metallurgy, chemical industry and other industries.
2. Cement, building materials and other industries of material storage and transportation.
3. Food, medicine and other industries of material storage and transportation.

Material selection of lift buckets

If the lifting materials are corrosive, then you can choose stainless steel; abrasive materials can choose manganese plate and wear-resistant plate material; if there is no special requirements of ordinary materials can be selected carbon steel material.

Carbon steel: economic and durable, suitable for general non-corrosive materials.

Stainless steel (304/316): corrosion-resistant, used for food, chemical or humid environment.

Polypropylene (PP) or polyethylene (PE): lightweight, anti-stick, suitable for food or high hygiene standards.

Wear-resistant steel (e.g. NM400): for highly abrasive materials (e.g. ores, gravel).

The correct use of elevator bucket

1. Select the right type and material of elevator bucket according to the material characteristics.

2. Clean the inside of the elevator bucket regularly to keep it dry and avoid the material being wet.

3. Check the safety performance of elevator bucket regularly to ensure the safety and reliability of use.

4. pay attention to maintain normal flow and speed when operating to avoid jamming or excessive flow.

5. Cooperate with the use of equipment to ensure the efficiency and quality of transportation.

In short, elevator bucket as an important conveying and storage equipment, a wide range of applications, the use of simple methods, but need to pay attention to the correct use and maintenance to ensure production efficiency and safety.

Loading of lift buckets

Lift buckets are a kind of equipment for material storage and conveying, usually used for material storage and conveying in vibrating feeders, screw conveyors, magnetic separators and other equipment. It can effectively control the speed and amount of material flow, prolong the service life of the equipment, improve the production efficiency and ensure the production safety.
Bucket elevator is loaded at the end, and there are two kinds of loading forms:

Hollowing type

Loading by the bucket in the material hollowing. Hollowing type is mainly used for conveying powdery, granular, small pieces of non-abrasive or semi-abrasive bulk materials. Due to the hollowing out of the material will not produce a lot of resistance, so the bucket elevator bucket is allowed to run at a high speed of 0.8 ~ 2m / s.

Inflow type

The material flows directly into the bucket elevator bucket. Inflow type is used for conveying large lumps and abrasive materials. The arrangement of its bucket is very dense to prevent the material from scattering between the bucket elevator buckets.
