Grind Roller

Grind Roller Overview

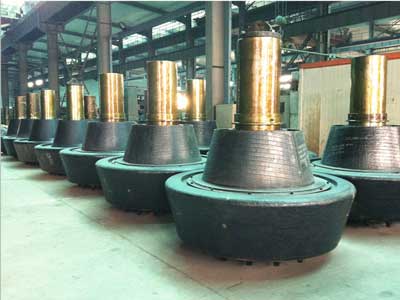

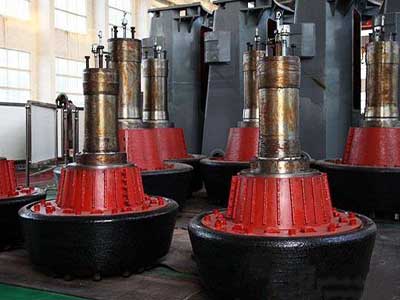

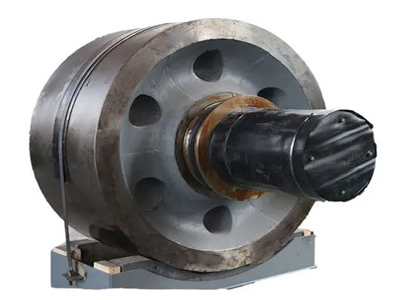

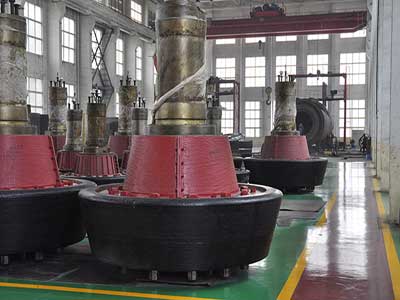

The grind roller is the heart of the vertical mill. Its inclined geometry increases contact area and helps prevent large material from blocking the air intake. The assembly includes roller shaft, bearing, hub and roller sleeve with lubrication that cools and protects the bearings.

The original page references ZG30Mn cast steel, arc-air gouging finishing, wear-resistant design and strict factory inspection. Actual geometry and material are confirmed against the mill drawing and duty.

The Grind Roller protects equipment or performs comminution in abrasive and impact service. Its performance cannot be judged by outside dimensions alone. Load path, mating parts, operating environment and the condition of the surrounding equipment all affect whether a replacement will fit correctly and run reliably. AGICO therefore reviews the component as part of the machine rather than treating it as an isolated catalogue item.

For a replacement project, the most useful starting point is the current drawing together with the equipment model and site observations. Wear photographs, failure location, maintenance history and measurements taken during shutdown help distinguish normal consumption from an interface, alignment or operating problem. This review allows the quotation to state the proposed supply boundary and the information that still requires confirmation.

The production route for the Grind Roller is established after drawing review. It typically coordinates material selection, controlled forming or casting, heat treatment and finishing. Process hold points depend on material, geometry and the buyer's inspection requirements. Critical datums and machining references are identified early so that later operations protect the interfaces used during installation.

Inspection is planned around product risk rather than added only at final dispatch. Chemical composition and material traceability; Hardness profile or agreed mechanical properties; Dimensions, fixing interfaces and profile conformity; Surface and internal inspection where specified. When a test or report is required, it should be listed in the enquiry so that sampling, acceptance criteria and document format can be agreed before manufacture. Final release checks also confirm marking, quantity, surface protection and the packing list.

AGICO can prepare a drawing-based Grind Roller for new supply or replacement service. The technical review covers the requested material, configuration, interfaces, inspection scope and documentation. If the original drawing is incomplete, provide measurements, nameplate information and clear photographs; the missing points will be listed for confirmation. No order-dependent dimension or performance value is treated as final until it appears in the approved technical documents.

Packing is planned for component weight, geometry, transport mode and destination. Finished surfaces can be protected against handling damage and corrosion, while loose accessories and documents are identified against the packing list. For international delivery, buyers should state the destination, preferred trade terms, lifting or site-access restrictions and required arrival schedule so that the quotation can separate manufacturing scope from freight and local handling.
