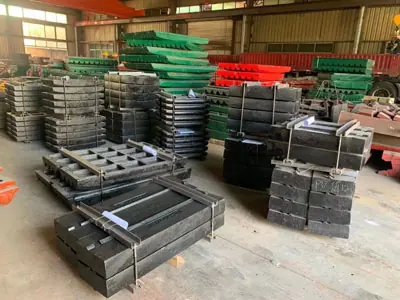

Jaw Plate

Jaw Plate Overview

Application: Jaw crusher Material: new high manganese steel, high manganese steel, ultra-high manganese steel, super high manganese steel, etc. Application: Widely used for medium-sized crushing of various ores and bulk materials in mining, smelting, building materials, highways, railways, water conservancy and chemical industries, such as iron ore, limestone, copper ore, sandstone, etc. Customizable: yes Operating principle: When the jaw crusher is working, the eccentric shaft drives the movable jaw to move up and down, and pushes the movable jaw to approach the fixed jaw plate to realize the crushing of materials.

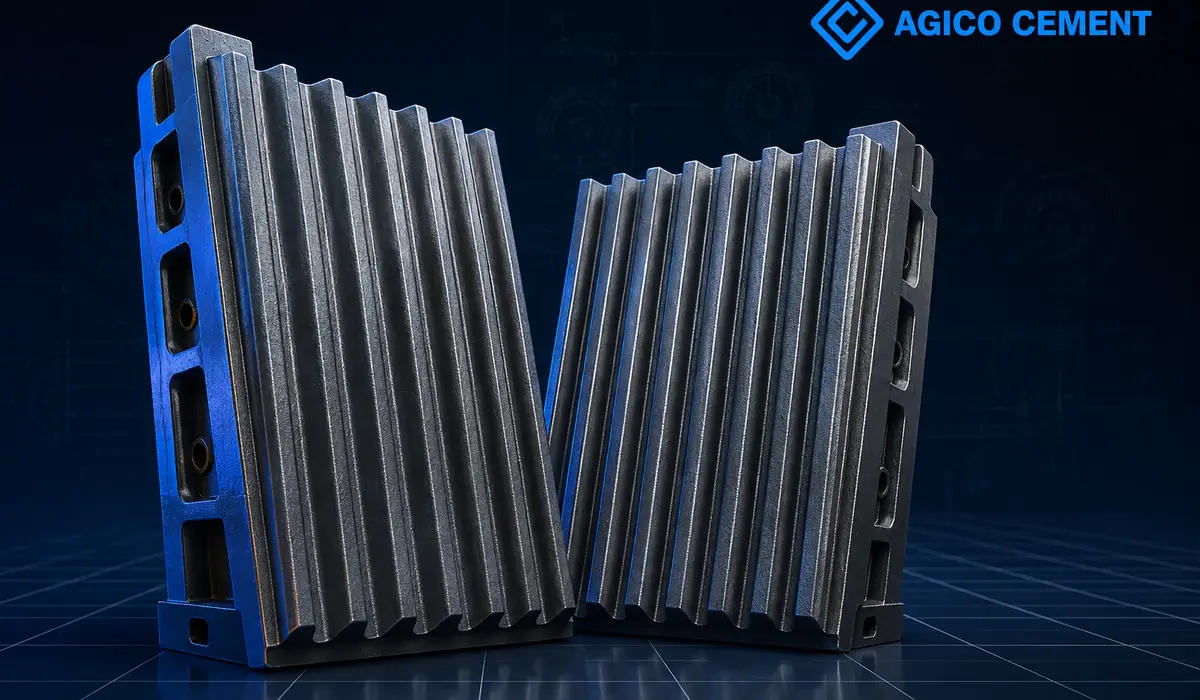

Jaw crusher mobile jaw is also called jaw head and jaw back, and jaw plate is also called tooth plate, which is the key wear-resistant part in jaw crusher. A set of jaws usually consists of two parts, namely the movable jaw and the fixed jaw. The jaw is the main part of the jaw crusher, and there are movable jaws and static jaws. The biggest consumption in the production of the crusher is the jaw plate, so the quality must be controlled in the selection of talents. It can also be said that the quality of a crusher is actually based on the service life of the jaw plate. According to the different models of jaw crushers, there are various models and sizes, and they are generally made of high manganese steel. High-manganese steel has excellent anti-wear properties under the condition of strong impact abrasive wear, high tensile strength, plasticity and toughness, and non-magnetic properties. Even if the parts are worn very thin, they can still withstand large impact loads without breaking.

The Jaw Plate protects equipment or performs comminution in abrasive and impact service. Its performance cannot be judged by outside dimensions alone. Load path, mating parts, operating environment and the condition of the surrounding equipment all affect whether a replacement will fit correctly and run reliably. AGICO therefore reviews the component as part of the machine rather than treating it as an isolated catalogue item.

For a replacement project, the most useful starting point is the current drawing together with the equipment model and site observations. Wear photographs, failure location, maintenance history and measurements taken during shutdown help distinguish normal consumption from an interface, alignment or operating problem. This review allows the quotation to state the proposed supply boundary and the information that still requires confirmation.

The production route for the Jaw Plate is established after drawing review. It typically coordinates material selection, controlled forming or casting, heat treatment and finishing. Process hold points depend on material, geometry and the buyer's inspection requirements. Critical datums and machining references are identified early so that later operations protect the interfaces used during installation.

Inspection is planned around product risk rather than added only at final dispatch. Chemical composition and material traceability; Hardness profile or agreed mechanical properties; Dimensions, fixing interfaces and profile conformity; Surface and internal inspection where specified. When a test or report is required, it should be listed in the enquiry so that sampling, acceptance criteria and document format can be agreed before manufacture. Final release checks also confirm marking, quantity, surface protection and the packing list.

AGICO can prepare a drawing-based Jaw Plate for new supply or replacement service. The technical review covers the requested material, configuration, interfaces, inspection scope and documentation. If the original drawing is incomplete, provide measurements, nameplate information and clear photographs; the missing points will be listed for confirmation. No order-dependent dimension or performance value is treated as final until it appears in the approved technical documents.

Packing is planned for component weight, geometry, transport mode and destination. Finished surfaces can be protected against handling damage and corrosion, while loose accessories and documents are identified against the packing list. For international delivery, buyers should state the destination, preferred trade terms, lifting or site-access restrictions and required arrival schedule so that the quotation can separate manufacturing scope from freight and local handling.
