Grind Table

Grind Table Overview

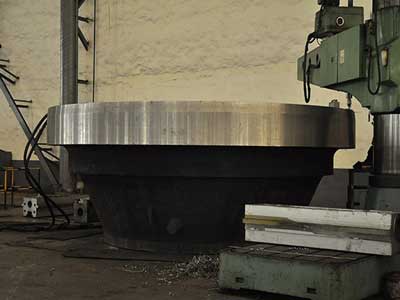

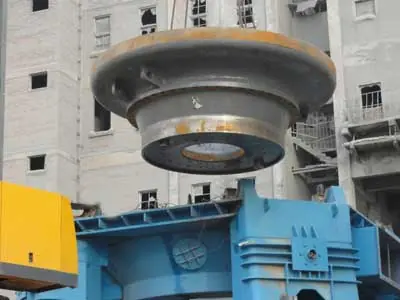

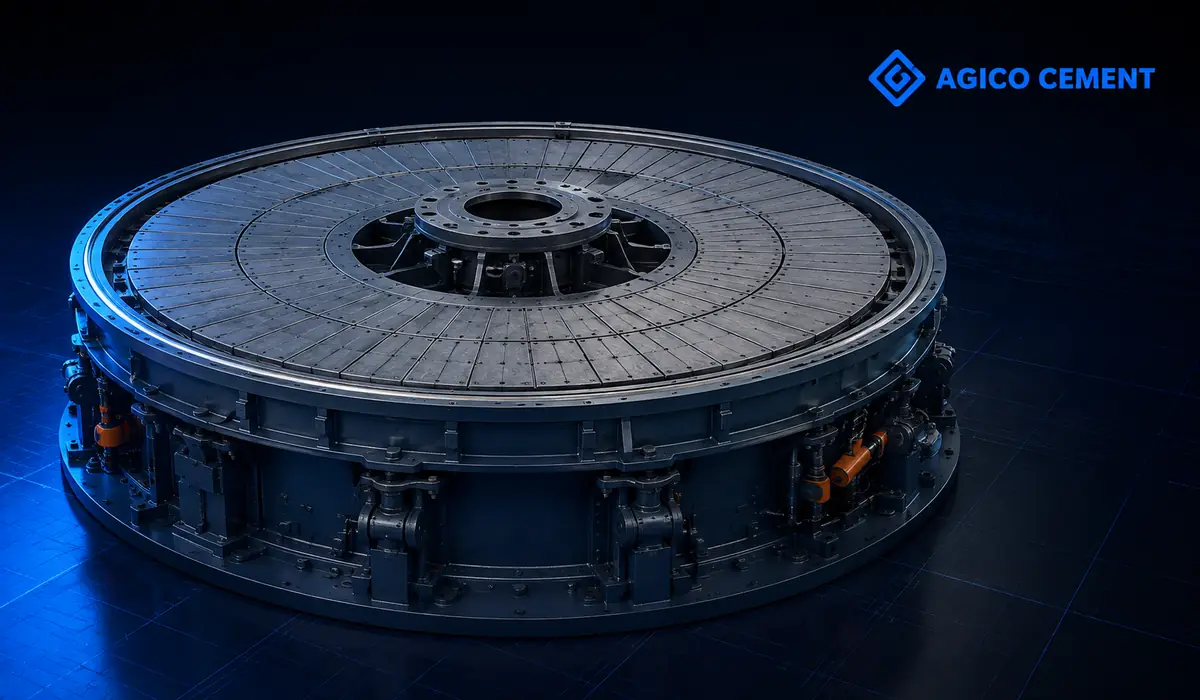

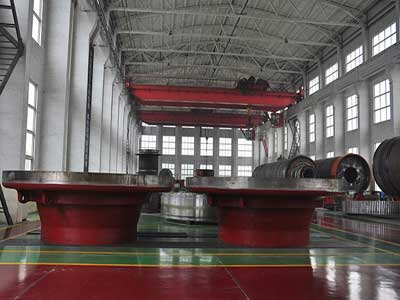

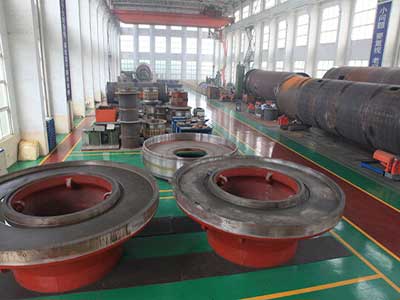

The grind table for vertical milling machine supports the material bed, transfers grinding-roller force to the reducer and carries reducer torque into the grinding zone. Together with the air duct it forms the annular chamber feeding gas through the ventilation ring.

AGICO uses casting-process design and machining controls to improve load distribution, bite angle and interface accuracy. The buyer drawing governs table diameter, hub connection, track geometry and air-ring relationship.

The Grind Table forms a load-bearing or process-facing structure within cement and heavy industrial equipment. Its performance cannot be judged by outside dimensions alone. Load path, mating parts, operating environment and the condition of the surrounding equipment all affect whether a replacement will fit correctly and run reliably. AGICO therefore reviews the component as part of the machine rather than treating it as an isolated catalogue item.

For a replacement project, the most useful starting point is the current drawing together with the equipment model and site observations. Wear photographs, failure location, maintenance history and measurements taken during shutdown help distinguish normal consumption from an interface, alignment or operating problem. This review allows the quotation to state the proposed supply boundary and the information that still requires confirmation.

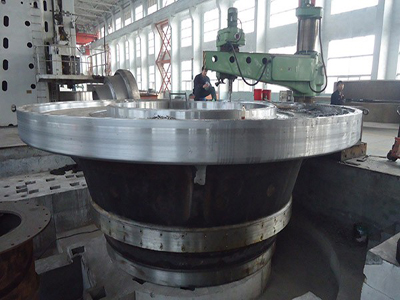

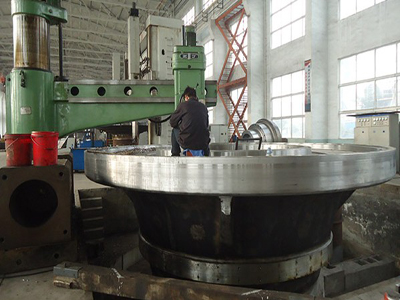

The production route for the Grind Table is established after drawing review. It typically coordinates casting-process design, controlled melting and pouring, heat treatment and machining. Process hold points depend on material, geometry and the buyer's inspection requirements. Critical datums and machining references are identified early so that later operations protect the interfaces used during installation.

Inspection is planned around product risk rather than added only at final dispatch. Material chemistry and heat-treatment traceability; Casting surface and agreed NDT inspection; Machined datums, interfaces and overall dimensions; Final documentation, marking and release review. When a test or report is required, it should be listed in the enquiry so that sampling, acceptance criteria and document format can be agreed before manufacture. Final release checks also confirm marking, quantity, surface protection and the packing list.

AGICO can prepare a drawing-based Grind Table for new supply or replacement service. The technical review covers the requested material, configuration, interfaces, inspection scope and documentation. If the original drawing is incomplete, provide measurements, nameplate information and clear photographs; the missing points will be listed for confirmation. No order-dependent dimension or performance value is treated as final until it appears in the approved technical documents.

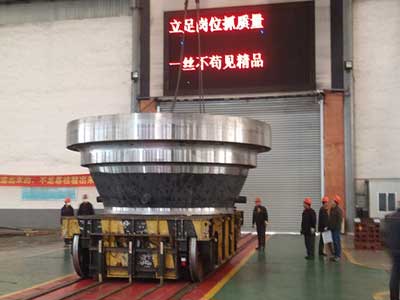

Packing is planned for component weight, geometry, transport mode and destination. Finished surfaces can be protected against handling damage and corrosion, while loose accessories and documents are identified against the packing list. For international delivery, buyers should state the destination, preferred trade terms, lifting or site-access restrictions and required arrival schedule so that the quotation can separate manufacturing scope from freight and local handling.
